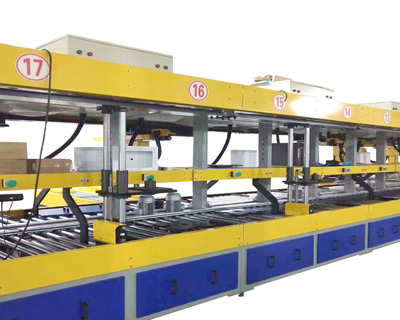

Automatic Brake Assembly Line

Independent research and development and manufacture of forklift brake assembly line. The equipment adopts the leading two-stage bed plane conveying structure design, which improves the utilization rate of the flow channel to 100% (the upper and lower conveying methods of traditional equipment work in the upper flow channel, and the lower flow channel can only be used for conveying follow-up tooling), and the flow channel uses 2.5 Double differential chain heavy-duty transmission, can assemble products weighing about 30kg. The overall equipment occupies a small area, beautiful in appearance, and it is easier to realize automatic and semi-automatic installation procedures.

Get Automatic Brake Assembly Line Price Now
Products

The Parameter of Of Automatic Brake Assembly Line

The Parameter of Of Automatic Brake Assembly Line

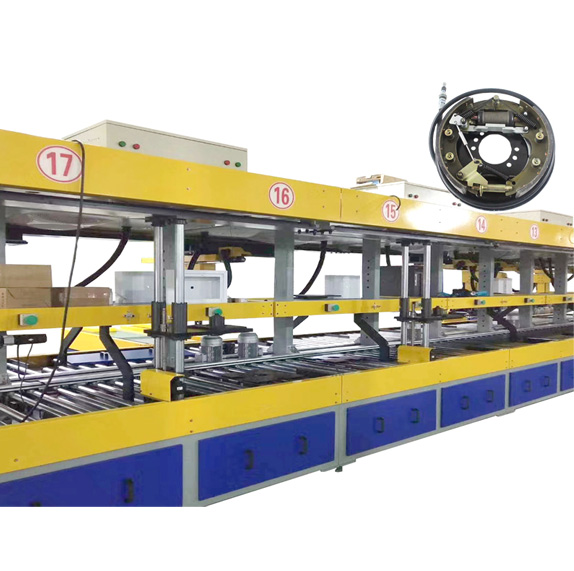

The Application Of Automatic Brake Assembly Line

The Application Of Automatic Brake Assembly Line

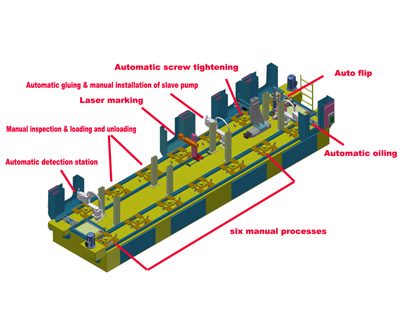

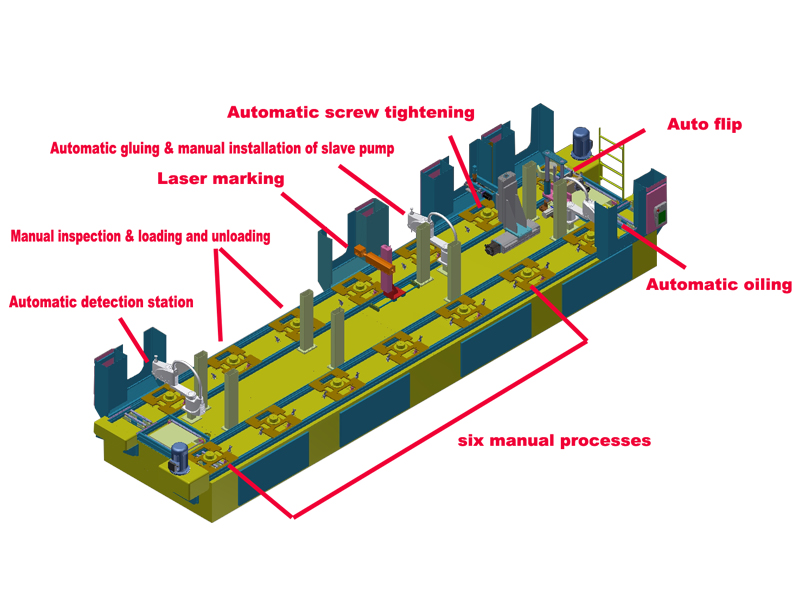

Brake assembly line is mainly used for assembly line of forklift brake. Combined with the whole assembly process of the brake, the flow assembly line of optical fiber + full computer numerical control laser automatic marking, automatic gluing, manual pump installation, automatic screw tightening, automatic turnover, automatic oiling and 6 manual assembly stations is designed.

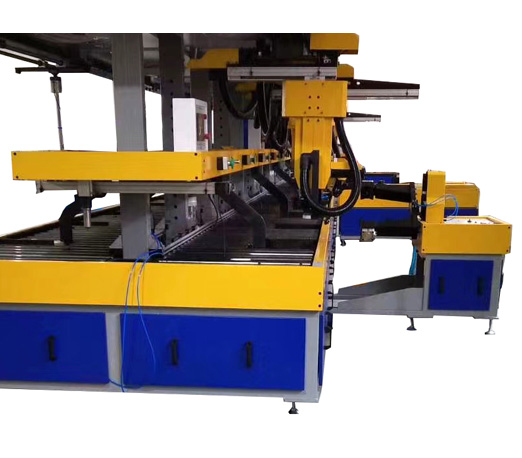

The Advantages Of Automatic Brake Assembly Line

The assembly line is divided into two sections, the head and the tail, the equipment is more stable, and the installation and disassembly are more convenient. Compared with the upper and lower conveying methods of traditional equipment, the plane conveying structure has a flow channel utilization rate of up to 100%. The runner adopts 2.5 times differential chain heavy-duty transmission, which can realize product assembly of about 30kg. The volume is about 40m³, the footprint is small, the body is beautiful, and it is easier to realize automatic and semi-automatic installation procedures.

The Advantages Of Automatic Brake Assembly Line

Other Notes Of Automatic Brake Assembly Line

Pot Cover Stainless Steel Punching Machine Main Characteristics

1

Laser marking, the laser marking machine can automatically engrave repeatedly to ensure clear words.

2

Automatic gluing, perfectly matched with four-axis machinery, the equipment can be used stably for a long time.

3

Automatically screw the screw, can set the torque and the number of turns of the screw.

4

Automatic flip, the design of automatic flip station on the runner subtly meets this demand.

5

Automatic oiling, four-axis robot + precision oiling parts, to achieve the oiling requirements of various specifications.

6

Automatic detection, four-axis robot + laser sensor + program coding, 360 ° all-round detection of the brake.
