Glass pot lid stainless steel belt punching machine is special punching equipment for glass pot lid steam holes, but it cannot be used alone and must be used in conjunction with a fully automatic stainless steel belt laser welding machine so that the punching and welding can be completed at one time.
| Rated Capacity | 2*1.1KW |
| Input voltage | 3*380V |
| Enter the frequency | 50HZ |
| The number of trips | 145times/min |
| Colsed height | 180mm |
| Connecting rod adjustment | 35mm |
| Mold handle size | 30mm |
| Nominal pressure | 100KN |
| Intake pressure | 0.4~0.7Mpa |
| Dimensions | 2100*1000*2000mm |
The equipment is mainly used for stainless steel punching of glass lids with steam pores. The equipment ensures 100,000 product punching times and is the best choice for stainless steel punching of glass lids.

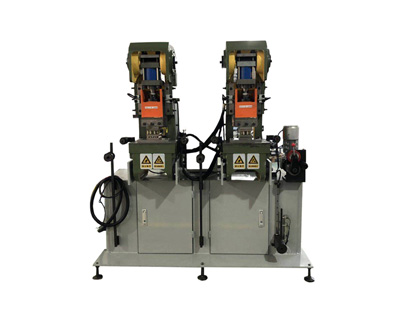

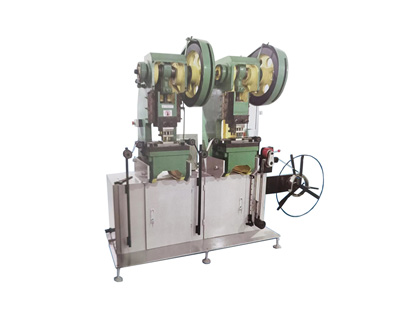

1. The equipment is equipped with two 10T punching machines, which have the characteristics of rapid punching, improve the service life of the die, and reduce the punching burr of the product.
2. Randomly equipped with two sets of punching dies, which can punch 100,000 times of maintenance dies (100,000 times of product burrs meet user requirements)

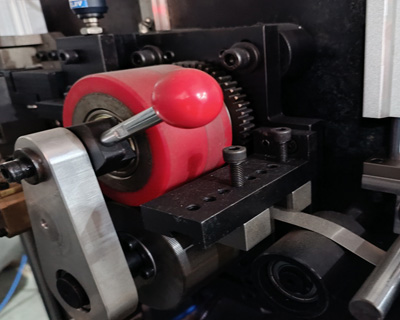

3. The equipment is equipped with two sets of adjustment wheels, which are used to adjust different product diameters and welding seam positions.
4. The equipment is also equipped with a material rack, a frequency conversion feeding device, a line rail storage device, and an input and output terminal, which is convenient for users to use online with a fully automatic stainless steel strip welding machine.
Tata tower punch sound when working
Check whether the brake is too tight or too loose, cut off the power touch the surface of the brake pad feel hot when the brake adjustment too tight, but too loose
Spring damage or fatigue
Clutch damaged
Product burr length exceeds the requirement
Change punch pin
Sharpen the knife grinding edge
