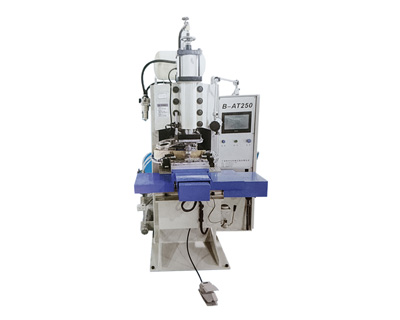

The automobile brake pad steel back spot welding machine adopts the intermediate frequency controller, which has high control precision, stable output current and saves power compared with the power frequency. The equipment has the function of single/continuous spot welding, and can perform welding of various specifications in a continuous cycle. The welding points of the same workpiece at different positions use different welding processes, which saves the tedious work of manpower switching welding specifications.
Enter capacity | Input voltage | Output current | Rated frequency | Load sustained rate | Max pressure | Max welding size | Cooling water | Cooling water temperature | Input cable |
250KVA | 3*380V | 32KA | 50/60Hz | 50% | 7800N | 230*180mm | 20L/min | 5~15℃ | 75㎡ |

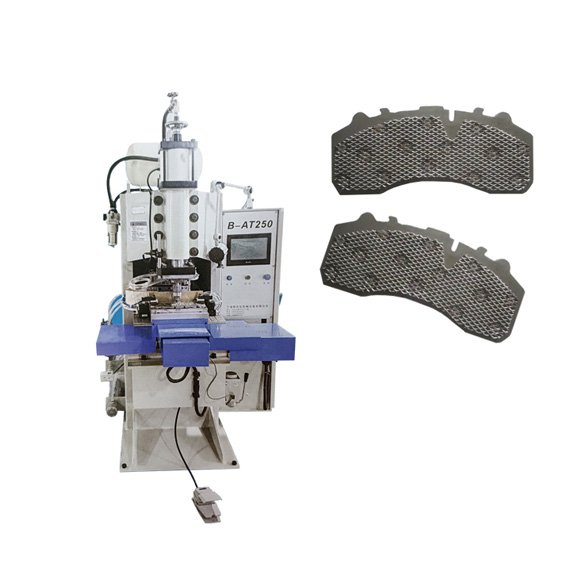

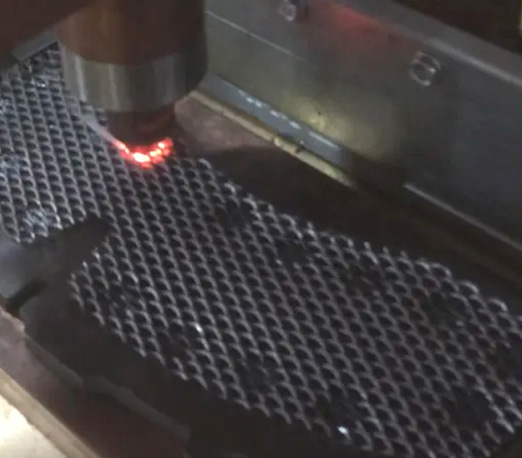

The equipment is mainly used for spot welding of steel backs of automobile brake pads, and is a special machine for spot welding of steel backs of brake pads. The welding machine adopts an intermediate frequency controller, which has high control precision and stable output current, which saves power compared with power frequency. The equipment has the function of single/continuous spot welding, and performs various specifications of welding in a continuous cycle. The pre-pressing time and welding current of each solder joint on the welded product can be adjusted individually to minimize the scrap rate.
The equipment has the counting function to count the welding times, which is convenient to understand the production on duty, greatly improving the work efficiency and reducing the shift change time. Three phase power input, three-phase stability, small impact on the power grid, small transformer loss, and significant energy-saving effect. The three discharge pulses can be set separately and used separately or in any combination. High flexible multi-layer copper tape is used for conduction, which has the advantages of high conductivity, good heat dissipation conditions, convenient maintenance, etc.
Automobile brake pad steel back spot welding machine Main Characteristics
Adopt intermediate frequency controller, high welding control precision.
The output current is stable, achieving the effect of energy saving.
The equipment has the function of single and continuous spot welding, eliminating the need for manual switching of welding work.
High-flexibility multi-layer copper tape is used for electrical conduction, with high electrical conductivity.
The scrap rate is low. When the current is abnormal, the equipment will automatically alarm and stop.
The hydraulic angle cylinder is adopted, which improves the clamping force and the welding quality and appearance of the product.
