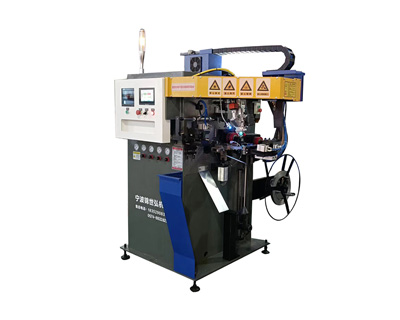

The equipment is mainly aimed at the stainless steel of the paper drum, which is made of galvanized material, and the laser welding technology is adopted. After laser welding, the product has no crease, the scratch length is less than 5mm, and the depth is less than 0.01mm. The material rack equipped with the equipment can bear 300kg, which can fully meet the weight of stainless steel galvanized materials of the paper drum.
Rated total power | Input voltage | Enter the frequency | Product diameter | Product thickness | Product width | Dimensions |
25KW | 3*380V | 50HZ | 120~650mm | <0.8mm | 12~80mm | 1800*1700*2100mm |

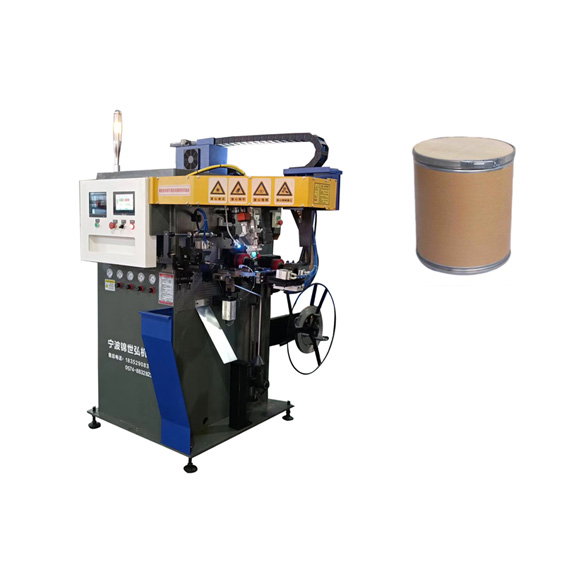

The equipment is mainly used in the stainless steel strip welding process of the paper drum. Because the stainless steel strip of the paper drum is mainly galvanized, the equipment is equipped with a 1000W laser continuous welding machine, which completely solves the problem of poor welding of galvanized materials. The equipment can also be connected to the automatic crimping equipment through the mechanical arm, so as to form the automatic production of welding and forming.
The equipment is a fully automatic cutting, rounding, welding and unloading machine for the steel ring of the paper drum; It is equipped with automatic crimping machine and robot for automatic reclaiming, crimping and unloading. The welding part is equipped with 1000 Watt continuous laser welding. The width of galvanized materials that can be welded by the equipment can reach 80mm, and the thickness is within 0.7mm.

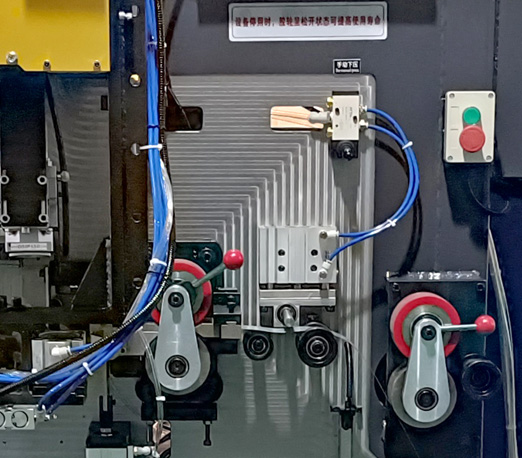

Paper drum stainless steel belt laser welder Main Characteristics
Fast speed, 10~15 pieces can be welded per minute.
Welding width, the maximum width of the product can be welded 80mm.
High configuration, the configured material rack can bear the weight of 300kg.
Large diameter, the diameter of products that can be welded by the equipment can reach 650mm.
The product has no creases, the scratch length is 5mm, and the depth is less than 0.01mm.
Welding thickness, the thickest product can weld stainless steel with a thickness of 0.7mm.
